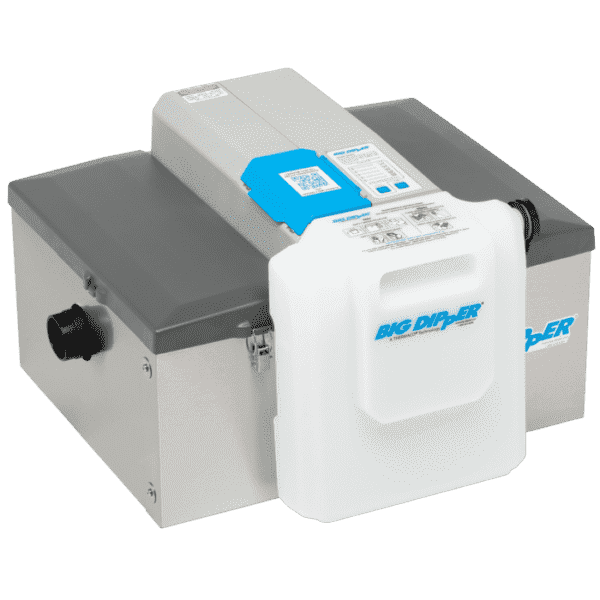

A stainless steel and plastic self-cleaning grease trap labeled "BIG DIPPER," featuring visible input and output pipes, a control panel, and a removable white container on the front for automatic grease removal. A 20 gpm pro automatic grease removal unit.
A stainless steel automatic oil and grease separator with a white detachable container labeled "Big Dipper" and a digital control panel on top, positioned on a white background.
Close-up of a Big Dipper self-cleaning grease trap showing a blue panel with a QR code and installation instructions, plus a control panel with labeled buttons, indicator lights, and operational instructions.
Technical line drawing of a rectangular self-cleaning grease trap with labeled dimensions, showing locations for a vessel vent with a 1-inch NPT connection and two 2-inch (50 mm) pipe inlets/outlets. Measurements shown in inches and millimeters.
Diagram showing how a Big Dipper self-cleaning grease trap works, with labeled steps: strainer basket catches solids, grease rises and is liquefied by heater, skimming wheel removes grease, and grease is collected for disposal.

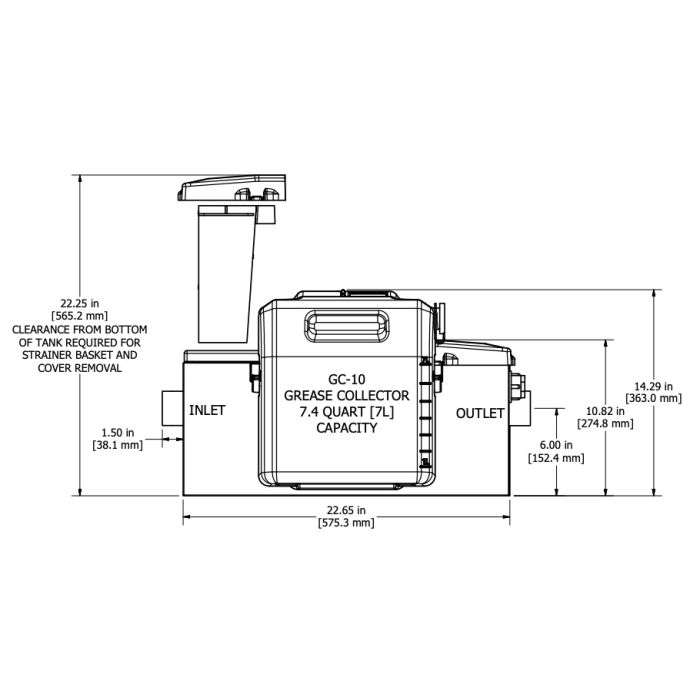

Technical diagram of a GC-10 automatic grease removal collector with 7.4 quart (7L) capacity, showing front and side views, labeled inlet and outlet, and various measurements in inches and millimeters.

Big Dipper W-200-IS — 20 GPM Pro Automatic Grease Removal Unit

Price range: $3,776.00 through $3,841.02

The W-200-IS 20 GPM Pro Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 20 GPM (1.26 l/s) flow while holding more than 47 lbs. (21.4 kg) of grease.  The center module which comes with digital time control, heater assembly, and mechanized skimming assembly, automatically isolates trapped grease into grease collector for easy disposal.
  • Advanced Odor Protection* (patent-pending) keeps odors inside the tank and out of the kitchen.
  • Fully automatic self-cleaning cycle. Removes collected grease & oils from tank without any operator assistance. Comes complete with digital control interface and Grease Collector.
  • Constructed of corrosion-resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.
  • Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.
  • Compact footprint.
  • Two (2) No-Hub Connectors provided.

The 20 GPM Big Dipper Pro Bundle provides everything needed for a complete Big Dipper installations. The bundle includes the W-200-IS and everything below:

The DSA-25-1 Dry Strainer is a companion for Big Dipper units with flow rates up to 25 gallons per minute (gpm). The Dry Strainer simplify maintenance and reduces clogged drains caused by coarse solids build-up.

The CF-VENT-1 Carbon Vent Filter is “activated” when injected with hot air or steam, creating pores that trap odor molecules. Big Dipper Carbon Vent Filter containers are durable and reusable, and the carbon pellets are biodegradable. Each filter comes with one 9-oz. packet of replacement pellets..

*Advanced Odor Protection prevents odors from escaping through the lid of the Big Dipper but does not prevent odors related to the rest of the plumbing system including but not limited to: open floor drains, air gaps, external solids straining devices, improper venting, and odors generated elsewhere in the plumbing system.

SKU: W-200 Categories: , ,

Description

Thermaco Big Dipper W-200-IS Series

The Thermaco Big Dipper W-200-IS is a 20 GPM Pro Automatic Grease Removal Unit. It is an automatic, self-cleaning grease and oil recovery separator designed for floor-mounted or partially recessed installation. This unit is engineered to efficiently separate and remove grease and oil from wastewater in commercial kitchens and food service establishments.

The unit features a robust construction, with a bright-finish Type 304 stainless steel exterior and a rotationally molded polyethylene interior. It is rated to ASME A112.14.3 and/or PDI-G 101 standards.

Core Features:

  • Automatic Self-Cleaning: A rotating gear oleophilic/hydrophobic skimming wheel automatically removes grease and oil.
  • Programmable Operation: A digital control allows for scheduling skimming cycles.
  • Heating System: A self-regulating electric immersion heater with thermostatic control maintains the grease in a liquid state for effective skimming.
  • User-Friendly Design: Features include quick-release stainless steel lid clamps, a fully removable polymer lid with magnetic tensioners, and a separate, gasketted grease collection container with a handle and spout.
  • Integrated Components: The unit includes a flow control device, a 1″ (25mm) vessel vent, an integral gas trap, and an internal polymer/stainless steel strainer basket for collecting coarse solids.
  • Flexible Installation: The motor assembly and inlet/outlet direction are field-reversible without needing special tools. Two (2) no-hub connectors are provided for plumbing connections.
  • Safety Compliance: The electric assembly is tested to comply with ANSI/UL 73 and/or ANSI/UL 1004 standards, and the motor is equipped with overload protection.

Electrical Variations

The standard electrical configuration is 115 VAC. An alternative high-voltage option is available.

  • Standard (W-200-IS): 115V 50/60Hz, 1173 Watts (10.2 Amps)
  • High-Voltage Option (W-200-IS-E): 230V 50/60Hz, 1173 Watts (5.1 Amps)

Alternative Model Numbers

The unit may also be listed under various notations, including: W200IS, W-200IS, W200-IS, W-200, W200, 200-IS, or 200IS.

Additional information

Weight 118 lbs
Dimensions N/A
Model

W-200-IS, Pro – W-200-IS-SFK
