The Big Dipper PRO W-750-IS Automatic Grease Removal Device is a reliable and efficient grease trap solution for commercial kitchens. It handles up to a 75 GPM flow and holds more than 168.95 lbs. (76.6 kg) of grease, while meeting PDI-G 101, ASME A112.14.3 and A112.14.4 standards.
Advanced odor protection* keeps odors inside the tank and out of your kitchen.
Automatically removes grease and oils from tank for easy daily cleaning in 2 minutes or less.
Corrosion-resistant materials suitable for installation in virtually any location.
Digital control for easy skim scheduling.
Attractive sanitary Stainless Steel exterior.
Compact footprint.
Note: This product is non-stock and non-returnable
*Advanced Odor Protection prevents odors from escaping through the lid of the Big Dipper but does not prevent odors related to the rest of the plumbing system including but not limited to: open floor drains, air gaps, external solids straining devices, improper venting, and odors generated elsewhere in the plumbing system.
$3,776.00–$3,841.02Price range: $3,776.00 through $3,841.02
The W-200-IS 20 GPM Pro Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 20 GPM (1.26 l/s) flow while holding more than 47 lbs. (21.4 kg) of grease. The center module which comes with digital time control, heater assembly, and mechanized skimming assembly, automatically isolates trapped grease into grease collector for easy disposal.
Advanced Odor Protection* (patent-pending) keeps odors inside the tank and out of the kitchen.
Fully automatic self-cleaning cycle. Removes collected grease & oils from tank without any operator assistance. Comes complete with digital control interface and Grease Collector.
Constructed of corrosion-resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.
Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.
Compact footprint.
Two (2) No-Hub Connectors provided.
The 20 GPM Big Dipper Pro Bundle provides everything needed for a complete Big Dipper installations. The bundle includes the W-200-IS and everything below:
The DSA-25-1 Dry Strainer is a companion for Big Dipper units with flow rates up to 25 gallons per minute (gpm). The Dry Strainer simplify maintenance and reduces clogged drains caused by coarse solids build-up.
The CF-VENT-1 Carbon Vent Filter is “activated” when injected with hot air or steam, creating pores that trap odor molecules. Big Dipper Carbon Vent Filter containers are durable and reusable, and the carbon pellets are biodegradable. Each filter comes with one 9-oz. packet of replacement pellets..
*Advanced Odor Protection prevents odors from escaping through the lid of the Big Dipper but does not prevent odors related to the rest of the plumbing system including but not limited to: open floor drains, air gaps, external solids straining devices, improper venting, and odors generated elsewhere in the plumbing system.
Select options
This product has multiple variants. The options may be chosen on the product page
$3,927.00–$4,897.76Price range: $3,927.00 through $4,897.76
The Big Dipper PRO W-250-IS Automatic Grease Removal Device is a reliable and efficient grease trap solution for commercial kitchens. It is a 25 GPM pro automatic grease removal unit and holds more than 56.4 lbs. (25.6 kg) of grease, while meeting PDI-G 101, ASME A112.14.3 and A112.14.4 standards.
Advanced odor protection* keeps odors inside the tank and out of your kitchen.
Automatically removes grease and oils from tank for easy daily cleaning in 2 minutes or less.
Corrosion-resistant materials suitable for installation in virtually any location.
Attractive sanitary Stainless Steel exterior.
Compact footprint.
*Advanced Odor Protection prevents odors from escaping through the lid of the Big Dipper but does not prevent odors related to the rest of the plumbing system including but not limited to: open floor drains, air gaps, external solids straining devices, improper venting, and odors generated elsewhere in the plumbing system.
Select options
This product has multiple variants. The options may be chosen on the product page
The Big Dipper W-250-IS-T 25 GPM Automatic Grease Removal Device is a reliable and efficient grease trap solution for commercial kitchens. It is a 25 GPM automatic grease removal unit with a timer and holds more than 56.4 lbs. (25.6 kg) of grease, while meeting PDI-G 101, ASME A112.14.3 and A112.14.4 standards.
Fully automatic self-cleaning cycle. Actively removes collected grease & oils from tank without any operator assistance.
Comes complete with precision timer interface and Grease Collector.
Corrosion-resistant materials suitable for installation in virtually any location.
The Big Dipper W-350-IS-T 35 GPM Automatic Grease Removal Device is a reliable and efficient grease trap solution for commercial kitchens. It handles up to a 35 GPM flow and holds more than 85.18 lbs. (38.6 kg) of grease, while meeting PDI-G 101, ASME A112.14.3 and A112.14.4 standards.
Fully automatic self-cleaning cycle. Actively removes collected grease & oils from tank without any operator assistance.
Comes complete with precision timer interface and Grease Collector.
Corrosion-resistant materials suitable for installation in virtually any location.
The Big Dipper PRO W-350-IS Automatic Grease Removal Device is a reliable and efficient grease trap solution for commercial kitchens. It is a 35 GPM pro automatic grease removal unit and holds more than 85.18 lbs. (38.6 kg) of grease, while meeting PDI-G 101, ASME A112.14.3 and A112.14.4 standards.
Advanced odor protection* keeps odors inside the tank and out of your kitchen.
Automatically removes grease and oils from tank for easy daily cleaning in 2 minutes or less.
Corrosion-resistant materials suitable for installation in virtually any location.
Digital control for easy skim scheduling.
Attractive sanitary Stainless Steel exterior.
Compact footprint.
*Advanced Odor Protection prevents odors from escaping through the lid of the Big Dipper but does not prevent odors related to the rest of the plumbing system including but not limited to: open floor drains, air gaps, external solids straining devices, improper venting, and odors generated elsewhere in the plumbing system.
The Big Dipper PRO W-500-IS 50 GPM Pro Automatic Grease Removal Device is a reliable and efficient grease trap solution for commercial kitchens. It handles up to a 50 GPM flow and holds more than 108.4 lbs. (49.2 kg) of grease, while meeting PDI-G 101, ASME A112.14.3 and A112.14.4 standards.
Advanced odor protection* keeps odors inside the tank and out of your kitchen.
Automatically removes grease and oils from tank for easy daily cleaning in 2 minutes or less.
Corrosion-resistant materials suitable for installation in virtually any location.
Digital control for easy skim scheduling.
Attractive sanitary Stainless Steel exterior.
Compact footprint.
*Advanced Odor Protection prevents odors from escaping through the lid of the Big Dipper but does not prevent odors related to the rest of the plumbing system including but not limited to: open floor drains, air gaps, external solids straining devices, improper venting, and odors generated elsewhere in the plumbing system.

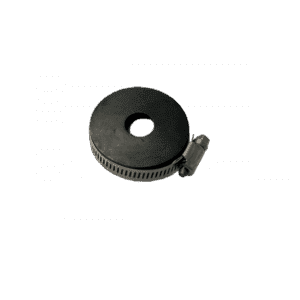

The use of a HAG-2 Horizontal Air Gap requires the flow from the sink be further restricted to meet the flow rate of a Big Dipper with 2″ Connection. An AGFC-1 must be installed at each drain valve which will drain into the horizontal air gap. Use of a HAG-2 or HAG-3 with a Big Dipper requires that the flow control (MFC-20 or MFC-25) be removed from the inlet of the unit.
Sometimes space restrictions require the installation of Big Dipper and Trapzilla units in basement locations where significant head pressure becomes a factor. The VFCA-35 Vented Flow Control module provides an option for use with installations where significant head pressure is present (greater than 6′ [1.95 m]) or where applicable regulations require vented flow controls. The Vented Flow Control helps reduce problems associated with high head pressure and helps slow the drainwater flow down the pipe, preventing it from exceeding 35 gallons per minute (2.21 l/s). Includes appropriate PVC fitting and flow stainless steel flow control orifice.
Sometimes space restrictions require the installation of Big Dipper and Trapzilla units in basement locations where significant head pressure becomes a factor. The VFCA-50 Vented Flow Control module provides an option for use with installations where significant head pressure is present (greater than 6′ [1.95 m]) or where applicable regulations require vented flow controls. The Vented Flow Control helps reduce problems associated with high head pressure and helps slow the drainwater flow down the pipe, preventing it from exceeding 50 gallons per minute (3.15 l/s). Includes appropriate PVC fitting and flow stainless steel flow control orifice.
